What Is a Deep Hole Drilling Machine? A Complete Guide for Beginners
Introduction: Why Deep Hole Drilling Matters
In modern manufacturing, precision and efficiency are key drivers of competitiveness. Many industries—including aerospace, oil and gas, automotive, and mold-making—require components with long, straight, and highly accurate holes. Standard drilling methods often fall short when holes exceed a certain depth-to-diameter ratio. That is where the deep hole drilling machine comes in.
This specialized machine tool is designed to drill holes with a depth-to-diameter ratio greater than 10:1, often reaching as high as 100:1 or even more. Unlike conventional drilling, which struggles with chip evacuation and accuracy at such depths, deep hole drilling machines are equipped with advanced mechanisms that ensure accuracy, efficiency, and reliability.
What Is a Deep Hole Drilling Machine?
A deep hole drilling machine is a type of CNC or manual equipment specifically engineered to produce holes with extreme depth while maintaining straightness, roundness, and precise tolerances. It is commonly used to process shafts, spindles, barrels, hydraulic cylinders, and components that require high-performance internal geometries.
These machines differ from standard drilling machines because they incorporate specialized tools, coolant systems, and rigid structures to overcome the challenges of deep drilling, such as tool deflection, excessive heat, and chip removal.
Key Technologies in Deep Hole Drilling
Deep hole drilling can be accomplished using two main methods:
-
Gun Drilling
-
Ideal for smaller diameter holes (typically 1–40 mm).
-
Uses a single-flute tool with high-pressure coolant to flush chips out through the tool’s V-shaped groove.
-
Delivers excellent straightness and precision, making it suitable for applications like medical instruments and aerospace components.
-
-
BTA (Boring and Trepanning Association) Drilling
-
Used for larger diameters (usually above 20 mm).
-
The coolant is introduced around the outside of the drill tube, while chips are evacuated through the inside.
-
Capable of faster feed rates and greater efficiency in larger, deeper holes.
-
Both methods rely heavily on coolant delivery systems and chip evacuation to maintain performance and extend tool life.
Core Components of a Deep Hole Drilling Machine
To achieve reliable performance, a deep hole drilling machine integrates several critical components:
-
Rigid Bed and Column: Typically made from heavy-duty cast iron to minimize vibration.
-
High-Pressure Coolant System: Ensures effective chip evacuation and heat dissipation.
-
Workpiece Holding and Rotation: Some machines rotate the workpiece, while others rotate the tool—or both—for optimal balance.
-
Spindle and Tooling System: Designed for stability and precision, often with multiple spindle options for different hole diameters.
-
CNC Controls: Enable automated cycles, precision interpolation, and integration with smart factory systems.
Applications of Deep Hole Drilling Machines
Deep hole drilling machines are indispensable across many industries:
-
Aerospace: Manufacturing turbine shafts, landing gear components, and structural connectors.
-
Oil & Gas: Producing long shafts, drilling equipment, and tubular components with high straightness requirements.
-
Automotive: Engine components, fuel injection systems, and drive shafts.
-
Mold Making: Cooling channels in injection molds and die-casting tools.
-
Defense & Firearms: Gun barrels and military equipment.
In all these sectors, the ability to produce accurate, deep, and consistent holes directly impacts product performance and reliability.
Benefits of Using a Deep Hole Drilling Machine
-
Precision: Maintains tight tolerances and surface finishes even at extreme depths.
-
Efficiency: High feed rates and optimized coolant systems reduce cycle times.
-
Reliability: Purpose-built machines ensure stable results with less downtime.
-
Cost Savings: Reduced scrap rates and longer tool life lead to better overall ROI.
-
Flexibility: Handles a wide range of materials, from steels and alloys to composites.
Challenges and Considerations
While these machines are powerful, users should be aware of certain challenges:
-
Initial Investment: Deep hole drilling machines can be more expensive than standard equipment.
-
Maintenance Needs: High-pressure coolant systems and precision tooling require consistent upkeep.
-
Operator Skill: Proper setup and monitoring are crucial for achieving optimal results.
By addressing these considerations with proper training, preventive maintenance, and supplier support, manufacturers can maximize the machine’s potential.
EVEROX Deep Hole Drilling Machines

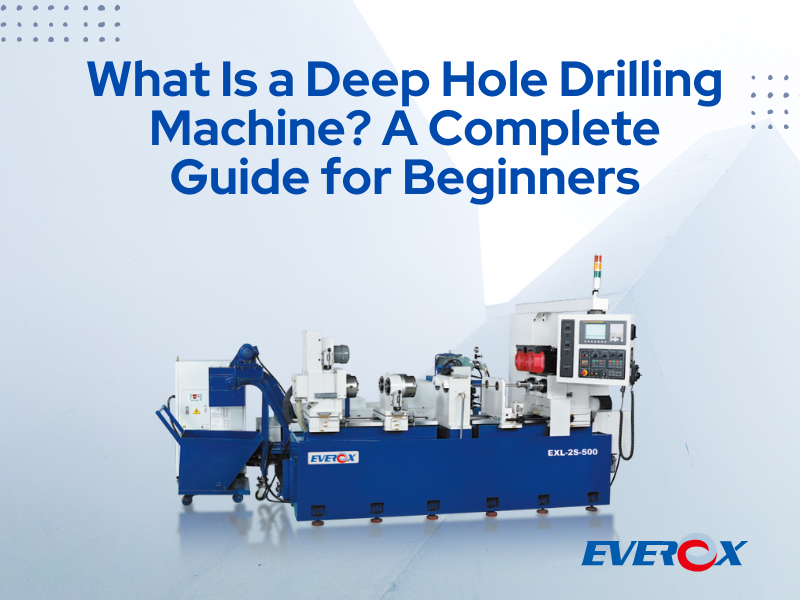

At EVEROX, we design and manufacture deep hole drilling machines that combine robust construction with advanced CNC control. Our product range includes EXL series for smaller diameter precision drilling and ELA/ELB models for large-diameter, ultra-deep applications—capable of depths up to 11,000 mm. Equipped with BTA and gun drilling technologies, high-pressure coolant systems, and customizable options, EVEROX machines are built for industries that demand accuracy and reliability.
➤ Explore our solutions here: EVEROX Deep Hole Drilling Machines
Conclusion: A Key Tool for Precision Manufacturing
For beginners in manufacturing, understanding the role of a deep hole drilling machine is essential. These machines solve the limitations of conventional drilling by enabling manufacturers to produce long, straight, and precise holes at industrial scale. Whether in aerospace, automotive, or heavy industries, deep hole drilling technology ensures that modern products meet the strictest standards of performance and reliability.
If your business requires precision deep drilling, now is the time to explore how a specialized machine can transform your production line.
✉ Contact EVEROX today to learn more about our deep hole drilling solutions and how we can support your manufacturing needs.
