Vertical Machining Center
VMC-1300 / 1500
Features
- The column, base table, and saddle are constructed for meehanite cast irons.
- Box type column and base construction combined with rib reinforced for maximum rigidity and outstanding vibration absorbing capability.
- 3-axis is linear ways.
- High precision ball screws X, Y, Z-axis, which are directly driven by servo motor without transmission backlash problem.
- Z axis with brake servo motor & no counter weight which design provide to ensure the best surface accuracy in the 3D machining.
Description
The EVEROX VMC-1300 / 1500 series is a high-rigidity vertical machining center designed for precision machining of larger and heavier workpieces. Built with Meehanite cast-iron structures and rib-reinforced box-type construction, the series provides excellent rigidity and vibration absorption. Three-axis linear guideways and high-precision ball screws directly driven by servo motors support smooth movement and consistent positioning performance. With X-axis travels of 1300 or 1500 mm, a maximum table load of 1,800 kg, and BT-40 or BT-50 spindle configurations, the VMC-1300 / 1500 offers the capacity and flexibility required for demanding machining applications.
Specification
| ITEM | UNIT | VMC-1300 | VMC-1300A | VMC-1500 | VMC-1500A |
|---|---|---|---|---|---|
| Travel | |||||
| X-axis travel | mm | 1300 | 1300 | 1500 | 1500 |
| Y-axis travel | mm | 700 | 700 | 700 | 700 |
| Z-axis travel | mm | 600/800 (opt.) | 700 | 600/800 (opt.) | 700 |
| Distance from spindle nose to table | mm | 110-710 / 910 (opt.) | 150-850 | 80-680 / 880 (opt.) | 120-820 |
| Distance from spindle center to column | mm | 780 | 780 | 780 | 780 |
| Table | |||||
| Table size (L*W) | mm | 1450*700 | 1450*700 | 1650*700 | 1650*700 |
| T-slot (#*W*P) | mm | 6*18*100 | 6*18*100 | 6*18*110 | 6*18*110 |
| Max. table loading | kg | 1800 | 1800 | 1800 | 1800 |
| Spindle | |||||
| Spindle nose taper | - | BT-40 | BT-50 | BT-40 | BT-50 |
| Spindle speed (Pulley) | rpm | 8000 / 10000 , 12000 (opt.) | 6000 / 8000 (opt.) | 8000/10000 , 12000 (opt.) | 6000/8000 (opt.) |
| Motors | |||||
| Spindle motor | kw | 7.5 / 11 or 11 / 15 (opt.) | 11 / 15 or 15 / 18.5 (opt.) | 7.5 / 11 or 11 / 15 (opt.) | 11 / 15 or 15 / 18.5 (opt.) |
| X,Y,Z-axis servo motor | kw | 4/4/4 | 4/4/4 | 4/4/4 | 4/4/4 |
| Coolant motor | HP | 3 BAR | 3 BAR | 3 BAR | 3 BAR |
| Rapid Traverse | |||||
| Linear way type | - | Roll 45mm | Roll 45mm | Roll 45mm | Roll 45mm |
| X,Y,Z-axis ball screw | mm | φ45xP = 12xC3 | φ45xP = 12xC3 | φ45xP = 12xC3 | φ45xP = 12xC3 |
| X,Y,Z-axis rapid traverse | m/min | 30 / 30 / 18 | 30 / 30 / 18 | 30 / 30 / 18 | 30 / 30 / 18 |
| 3 axis cutting feed rate | mm/min | 1 ~ 10000 | 1 ~ 10000 | 1 ~ 10000 | 1 ~ 10000 |
| Positioning accuracy | mm | 0.01 | 0.01 | 0.01 | 0.01 |
| Repeatability Positioning accuracy | mm | ±0.003 | ±0.003 | ±0.003 | ±0.003 |
| Tool Changer | |||||
| Max. tool weight | kg | 7 | 15 | 7 | 15 |
| Max. tool length | mm | 250 | 300 | 250 | 300 |
| Max. tool diameter / adjacent tool | mm | φ100 / φ150 | φ125 / φ250 | φ100 / φ130 | φ125 / φ250 |
| Tool storage capacity | pcs | 24 | 24 | 24 | 24 |
| Machine Size | |||||
| Floor space (L) | mm | 3260 | 3260 | 3660 | 3660 |
| Floor space (W*H) | mm | 2750x2800 / 3000 (opt.) | 2750x3000 (opt.) | 3750x2800 / 3000 (opt.) | 3750x3000 (opt.) |
| Machine weight | kg | 9300 | 9800 | 10000 | 10500 |
| CNC controller | - | Fanuc / Mitsubishi / Siemens / Fagor / Syntec | Fanuc / Mitsubishi / Siemens / Fagor / Syntec | Fanuc / Mitsubishi / Siemens / Fagor / Syntec | Fanuc / Mitsubishi / Siemens / Fagor / Syntec |
| Power requirement | KVA | 25 / 30 | 25 / 30 | 15 / 20 / 25 | 25 / 30 |
Technical Information

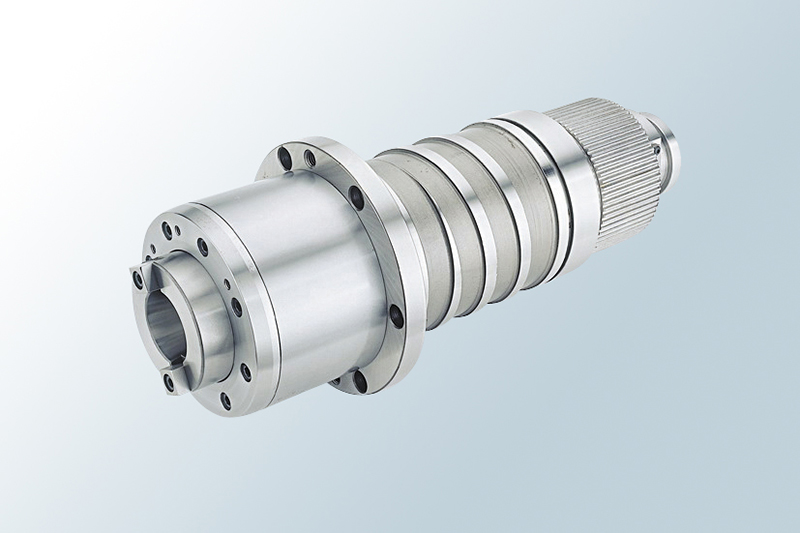

Precision high-speed spindle
The precision high-speed spindle is equipped P4 level angular contact anti-thrust bearings for heavy-duty cutting.

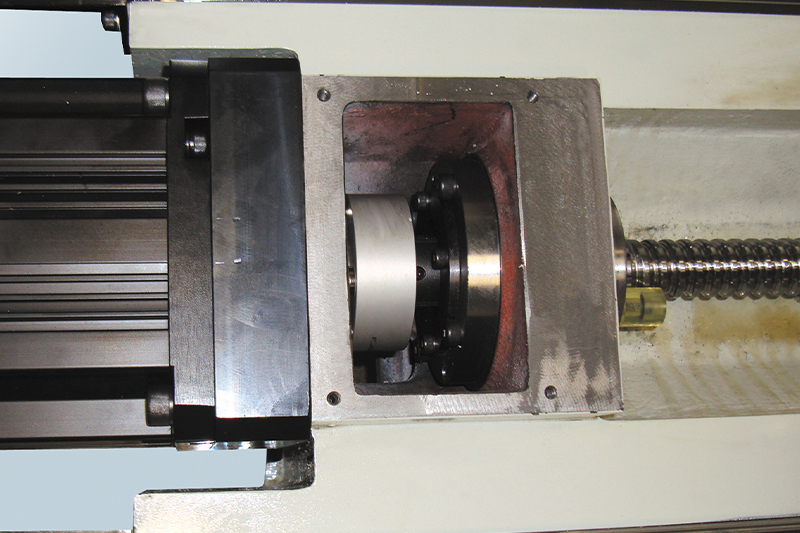

Direct driving ballscrews
High precision ball screws
X, Y, Z-axis

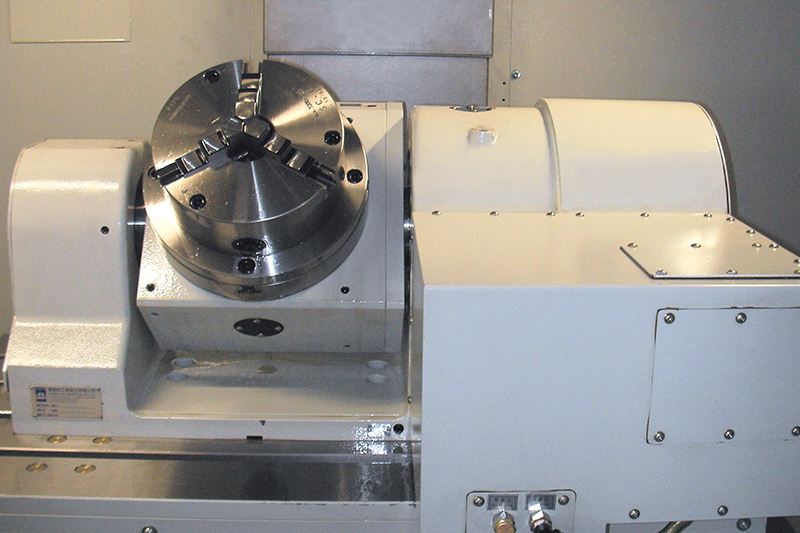

4, 5 Axis rotary and Tilting table (Opt.)

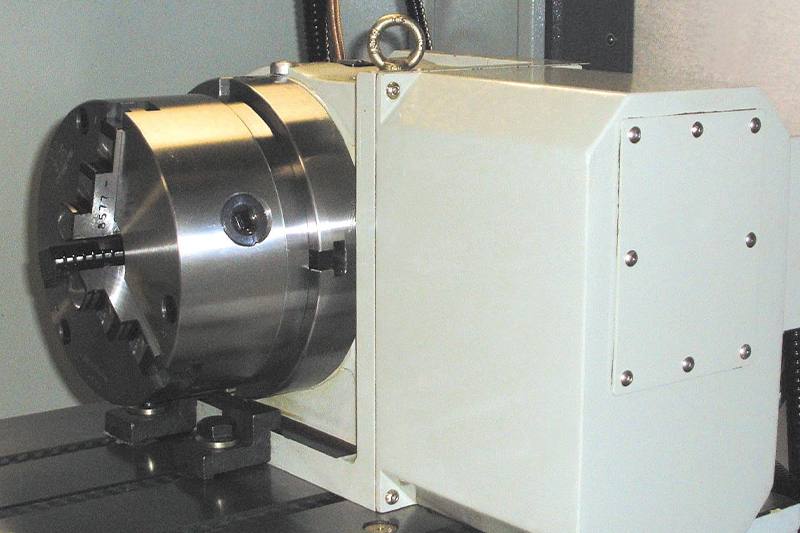

4 Axis rotary table (Opt.)

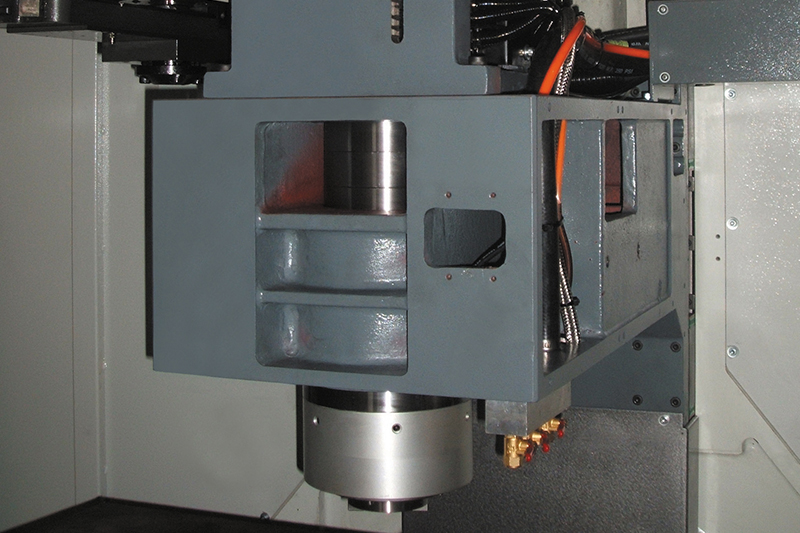

Direct drive spindle (Opt.)
Spindle speed: 12000 rpm / 15000 rpm

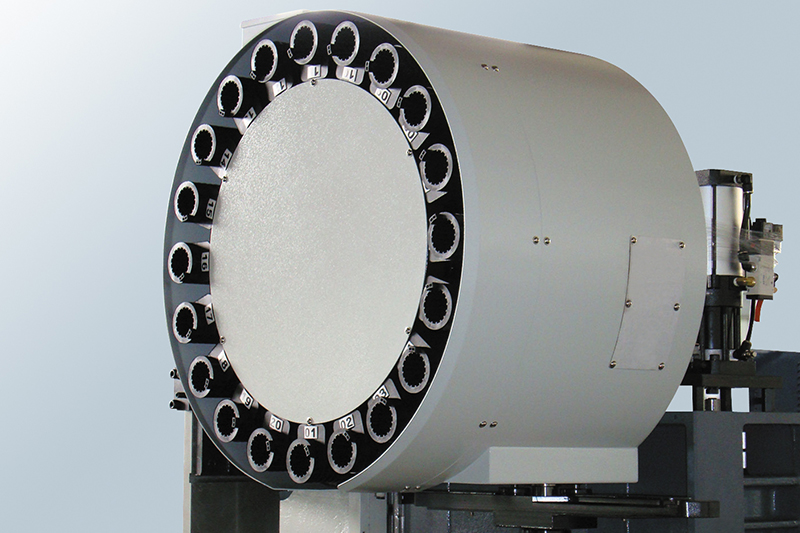

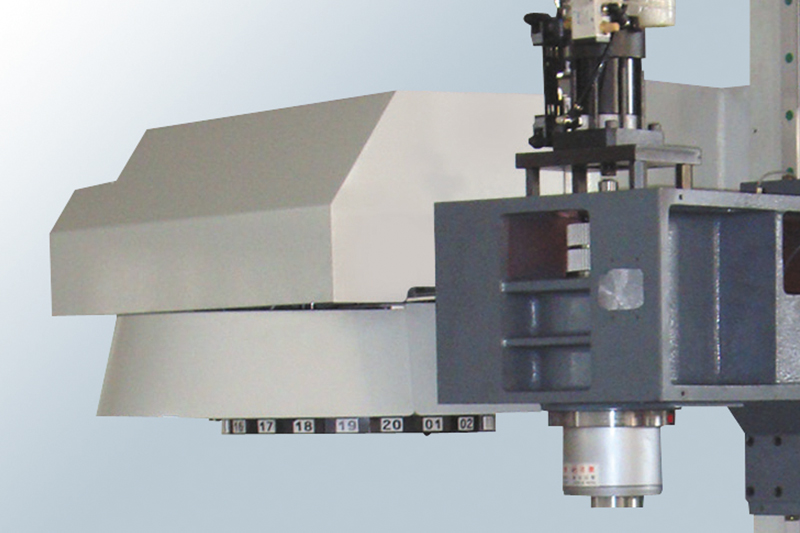

Arm Type ATC 20/24 Tools (Opt.)
